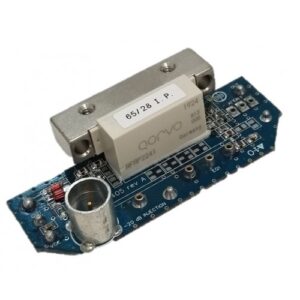

Reverse Amplifier, 5-LER91

Reverse/Return Amplifier Hybrid 5-LER91 Operational gain stated refers to the gain measured when the modules are plugged into Line Extenders; reduce the gain by 5dB to know the operational gain when using the 5LER91 module inside a Network Amplifier Station. I=Injection Point T=Test Point   Usage: Philips®/Magnavox® System Amplifiers and Line Extenders
OEM P.N. BBI P.N. Values
5-LER91-40/24-I 405424-I 40 MHz/I.P. 20 dB Typical Operational Gain
5-LER91-40/24-T 405424-T 40 MHz/T.P. 20 dB Typical Operational Gain
5-LER91-40/28-I 405428-I 40 MHz/I.P. 24 dB Typical Operational Gain
5-LER91-40/28-T 405428-T 40 MHz/T.P. 24 dB Typical Operational Gain
5-LER91-55/24-T 405524-T 55 MHz/T.P. 20 dB Typical Operational Gain
5-LER91-55/28-I 405528-I 55 MHz/I.P. 24 dB Typical Operational Gain
5-LER91-55/24-I 405524-I 55 MHz/I.P. 20 dB Typical Operational Gain
5-LER91-55/28-T 405528-T 55 MHz/T.P. 24 dB Typical Operational Gain
5-LER91-65/24-I 405624-I 65 MHz/I.P. 20 dB Typical Operational Gain
5-LER91-65/28-I 405628-I 65 MHz/I.P .24 dB Typical Operational Gain
5-LER91-65/24-T 405624-T 65 MHz/T.P. 20 dB Typical Operational Gain
5-LER91-65/28-T 405628-T 65 MHz/T.P. 24 dB Typical Operational Gain
BBI Magnavox Reverse Amplifier Module 5-LER91 Data Sheet
