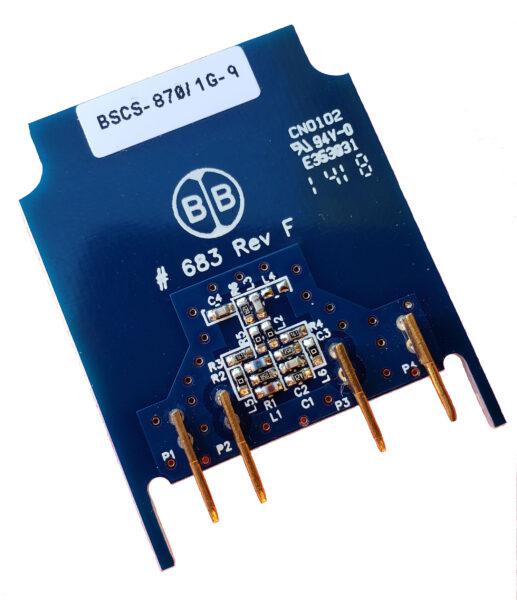

Cable Simulator, 1 GHz and 870 MHz, SCS

1 GHz and 870 MHz SCS Cable Simulators Usage: Broadband International® 2PAC-C Line Extenders and ARRIS®/C-COR® FlexMax 901e, 901, 331 Amplifiers, and OM2700 Nodes   (Note: Cannot be plugged into FM 330 or legacy C-COR amps due to PCB Guiding Mechanism)
OEM P.N. BBI P.N. Values
SCS-1G-02 683102C 2 dB
SCS-1G-03 683103C 3 dB
SCS-1G-04 683104C 4 dB
SCS-1G-05 683105C 5 dB
SCS-1G-06 683106C 6 dB
SCS-1G-07 683107C 7 dB
SCS-1G-08 683108C 8 dB
SCS-1G-09 683109C 9 dB
SCS-1G-10 683110C 10 dB
SCS-1G-11 683111C 11 dB
SCS-1G-12 683112C 12 dB
SCS-1G-13 683113C 13 dB
SCS-1G-14 683114C 14 dB
SCS-1G-15 683115C 15 dB
BBI ARRIS C-COR Cable Simulator SCS 1 GHz and 870 MHz Data Sheet
